- Product Description
-

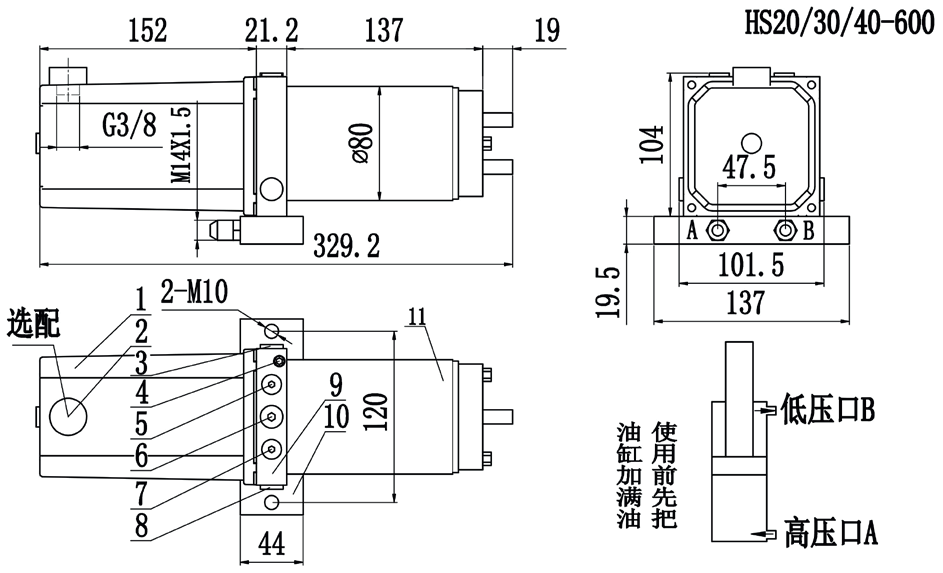

- Commodity name: HS40-600
-
Oil tank: Capacity 600 ml.
-
Oil tank cap: G3/8 thread, unscrew to add oil to the tank (optional).
-
Lifting single check valve: Contains a filter screen, clean once every six months.
-
Safety valve: Loosen the safety valve to allow the lifting rod to retract automatically under the load. Ensure it is tightened before the next use.
-
Lifting pressure adjustment plug: Unscrew the plug, adjust the nut inside. Tightening increases lifting force, loosening decreases it.
-
Oil tank filling port plug: Oil is added to the oil tank from here, and hydraulic oil is also replaced from here.
-
Retraction pressure adjustment plug: Unscrew the plug, adjust the nut inside. Tightening increases retraction force, loosening decreases it.
-
Retraction single check valve: Contains a filter screen, clean once every six months.
-
Valve body.
-
Base: Contains oil pipe connectors and mounting holes.
-
Motor: See parameter specification table.
Electric Hydraulic Power Unit Specifications HS40-600 Voltage DC24V/DC48V Power 800W Oil tank volume 600ml Maximum pressure 20MPa Displacement 0.38CC/0.6CC/0.88CC Oil pump type Double-direction gear pump Hydraulic oil specifications L-HV 46# Operating temperature -30 ~ 70℃ Usage frequency Continuous use for 6 minutes at a time Waterproof rating IPX5 Net weight/Gross weight/Packaging size 4.9KG/5.2KG/41*20*13CM
