Product Description

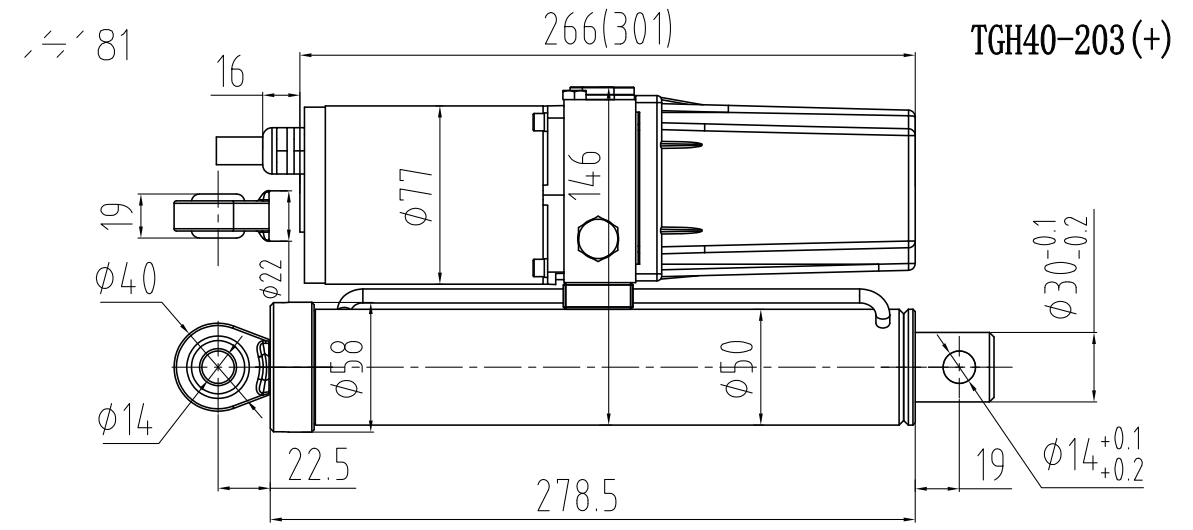

Commodity name: TGH40-203

Electric Hydraulic Push Rod Specifications	TGH40-203X
Voltage	DC220/12V/24V/48V	DC220/24V/48V
Power	300W	800W
Stroke	203mm	203mm
Lifting Force	1T	1.8T
Retracting Force	0.7T	1T
Load Speed	16-17mm/s	16-17mm/s
Operating Temperature	-30~70℃	-30~70℃
Usage Frequency	Long-term continuous use, 4 minutes at a time
Waterproof Rating	IPX6	IPX6
Net Weight/Gross Weight/Packing Dimensions	7.3kg/7.6kg/40x20x13cm	8.3kg/7.6kg/40x20x13cm
