- Product Description
-

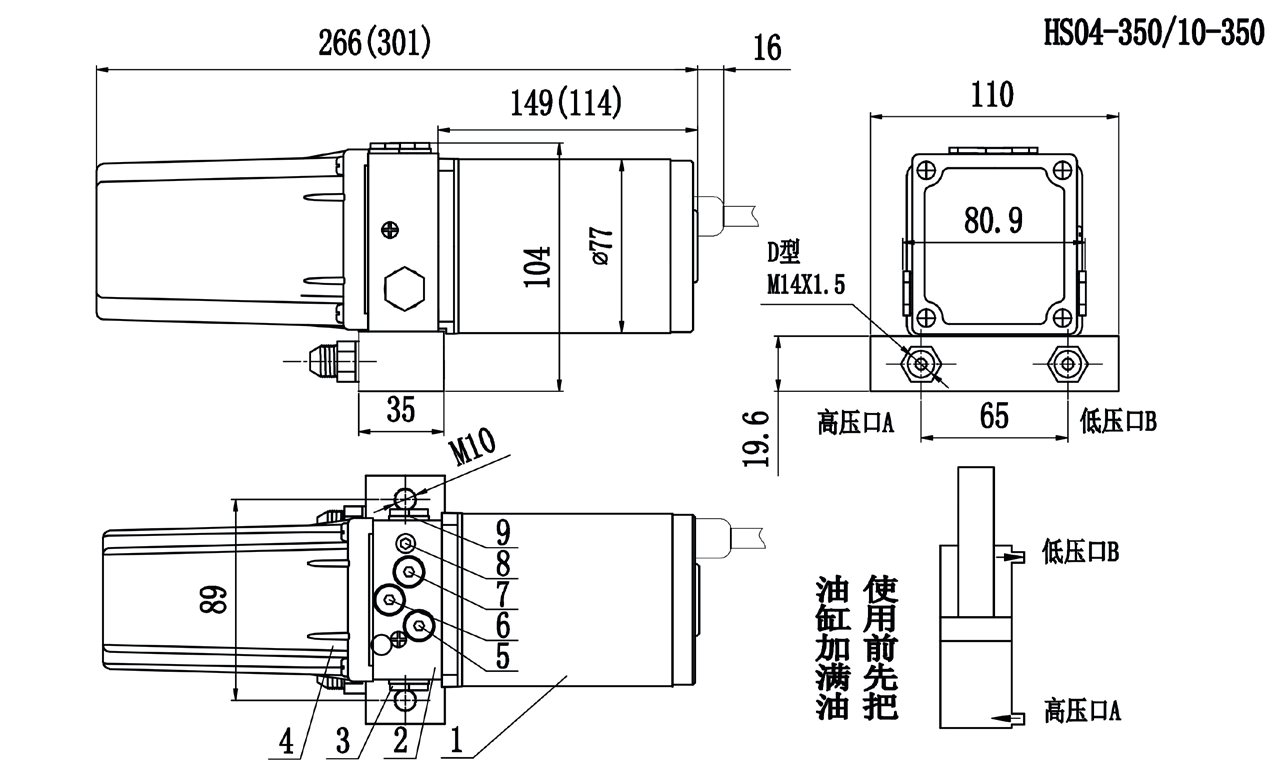

- Commodity name: HS10-350
-
Motor: See parameter specification table.
-
Gear pump valve body assembly: Self-locking, reversing, and high-pressure overflow integrated.
-
Retraction one-way plug: Contains a filter screen, clean once every six months.
-
Oil bladder guard: Contains an oil bladder, 350ml.
-
Retraction pressure adjustment plug: Unscrew the plug, adjust the nut inside, tighten to increase retraction force, loosen to decrease retraction force.
-
Oil tank filling port plug: Add oil to the oil tank from here, and hydraulic oil is also replaced from here.
-
Lifting pressure adjustment plug: Unscrew the plug, adjust the nut inside, tighten to increase lifting force, loosen to decrease lifting force.
-
Safety valve: Loosen the safety valve to allow the lifting rod to automatically retract under the action of the load force. Ensure it is tightened before the next use.
-
Lifting one-way plug: Contains a filter screen, clean once every six months.
Electric Hydraulic Station Specifications HS10-350 Voltage DC220V/DC24V/DC48V Power 800W Oil tank volume 350ML Maximum pressure 15MPa Displacement 19ml/S Oil pump type Double-direction gear pump Hydraulic oil specifications L-HV 46# Operating temperature -30 ~ 70℃ Usage frequency Continuous use for 6 minutes at a time Waterproof rating IPX6 Net weight/Gross weight/Packaging size 4.1KG/4.4KG/41*20*13CM
